Patient Chart Guide- Uploading documents directly within the patient's chart

Contents

• How to add documents to a patient's chart
• When to use the drag-and-drop feature
• Using the drag-and-drop feature in the chart
• Using the drag-and-drop feature in a visit note draft

How to add documents to a patient's chart

1. File documents from the Fax Inbox
2. Upload documents directly within the patient's chart using the drag-and-drop feature

When to use the drag-and-drop feature

The drag-and-drop feature comes in handy when you have documents on your computer that you would like to upload to a patient's chart. You can only use the drag-and-drop feature to upload one document at a time. If you need to upload multiple documents, you will need to take the drag-and-drop steps multiple times.

Use the Fax Inbox if:

• If you need to combine multiple documents into one record in the chart
• If a single document contains records for more than one patient

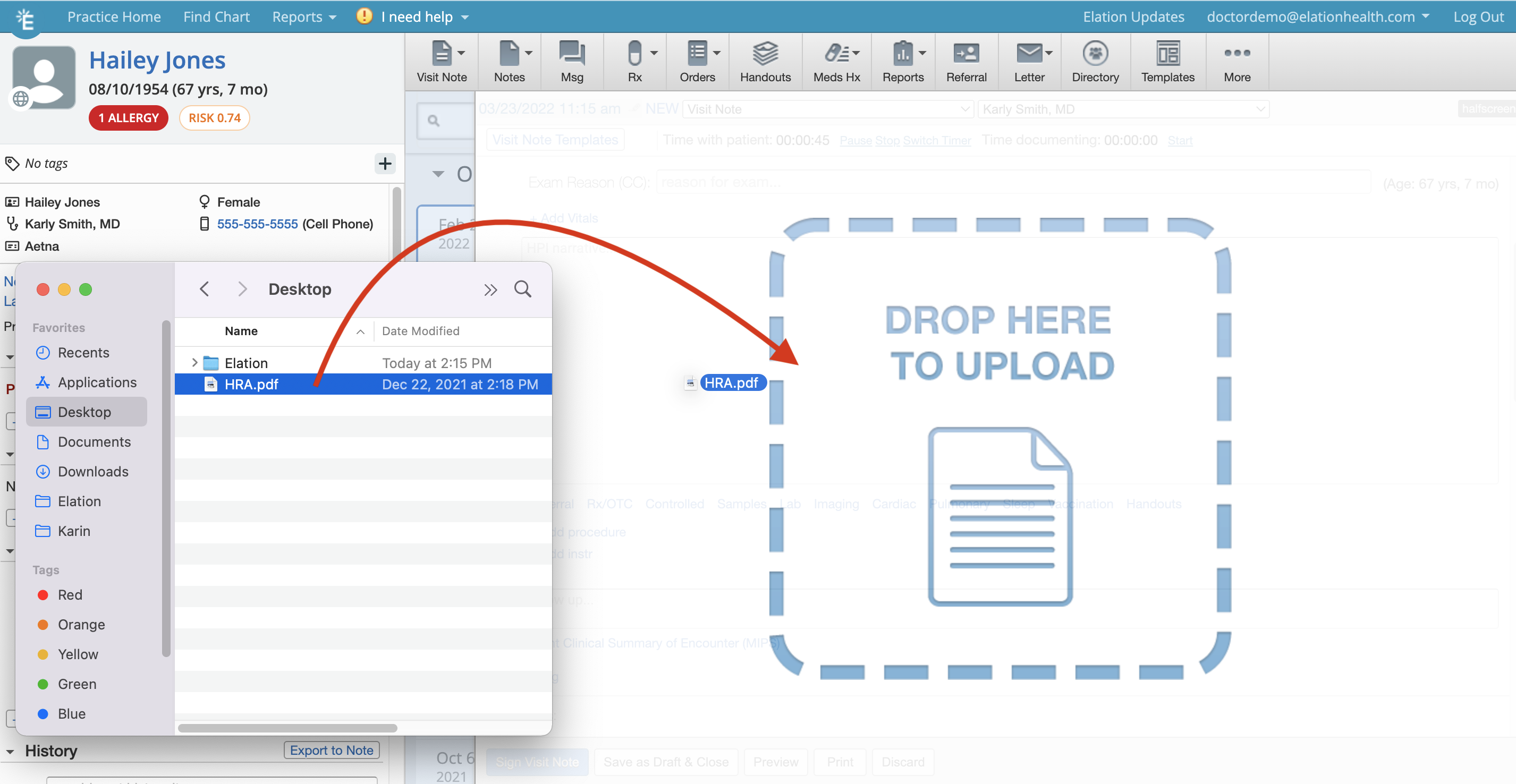

Using the drag-and-drop feature in the chart

1. Find the document you want to file into your patient's chart on your computer
2. Click on the file from your the folder on your computer, hold down on your mouse cursor and drag the file anywhere over the patient's chart in Elation and release your mouse cursor to drop the file

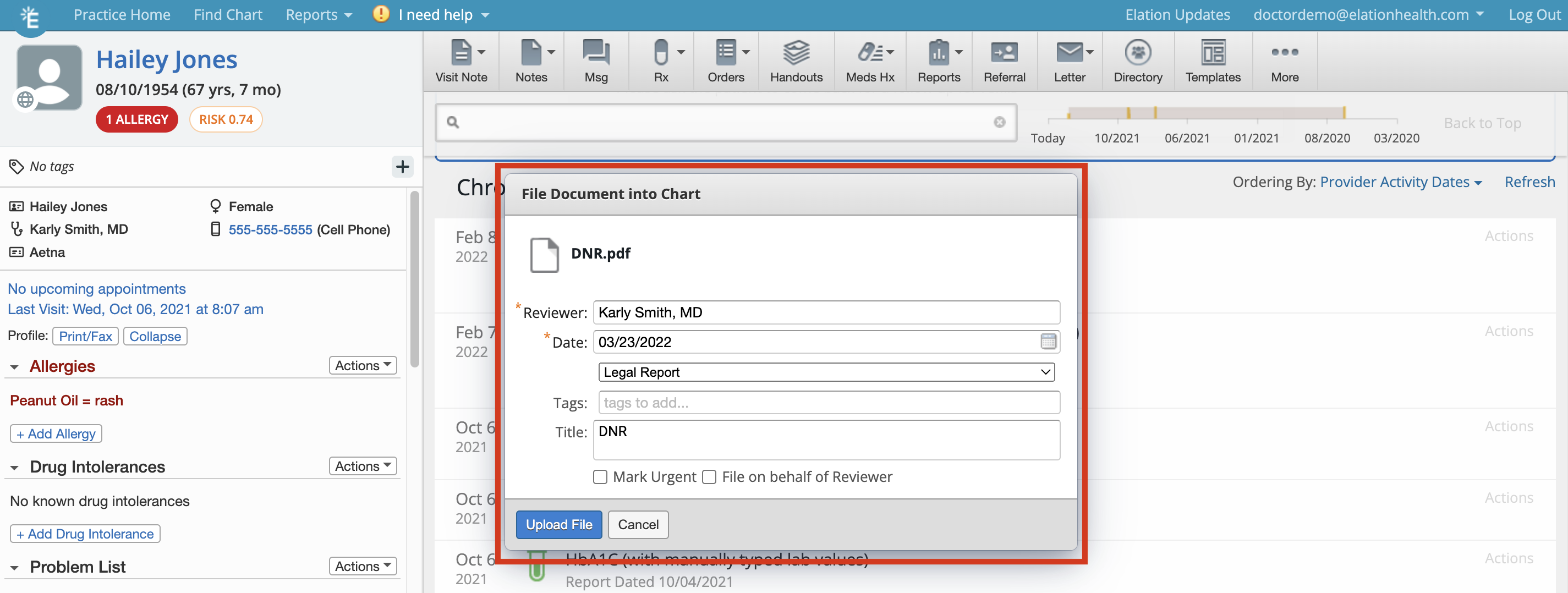

3. Fill out the reviewer's name, date of document, select the document type (Report Category) and add a title and/or report tags if desired.
4. Click "Upload File" when you are ready to upload the document

5. Wait for the document to upload and process before moving or removing it from the original location on your computer or the upload will fail.
6. Once processed, the document will appear in the Chronological Record.

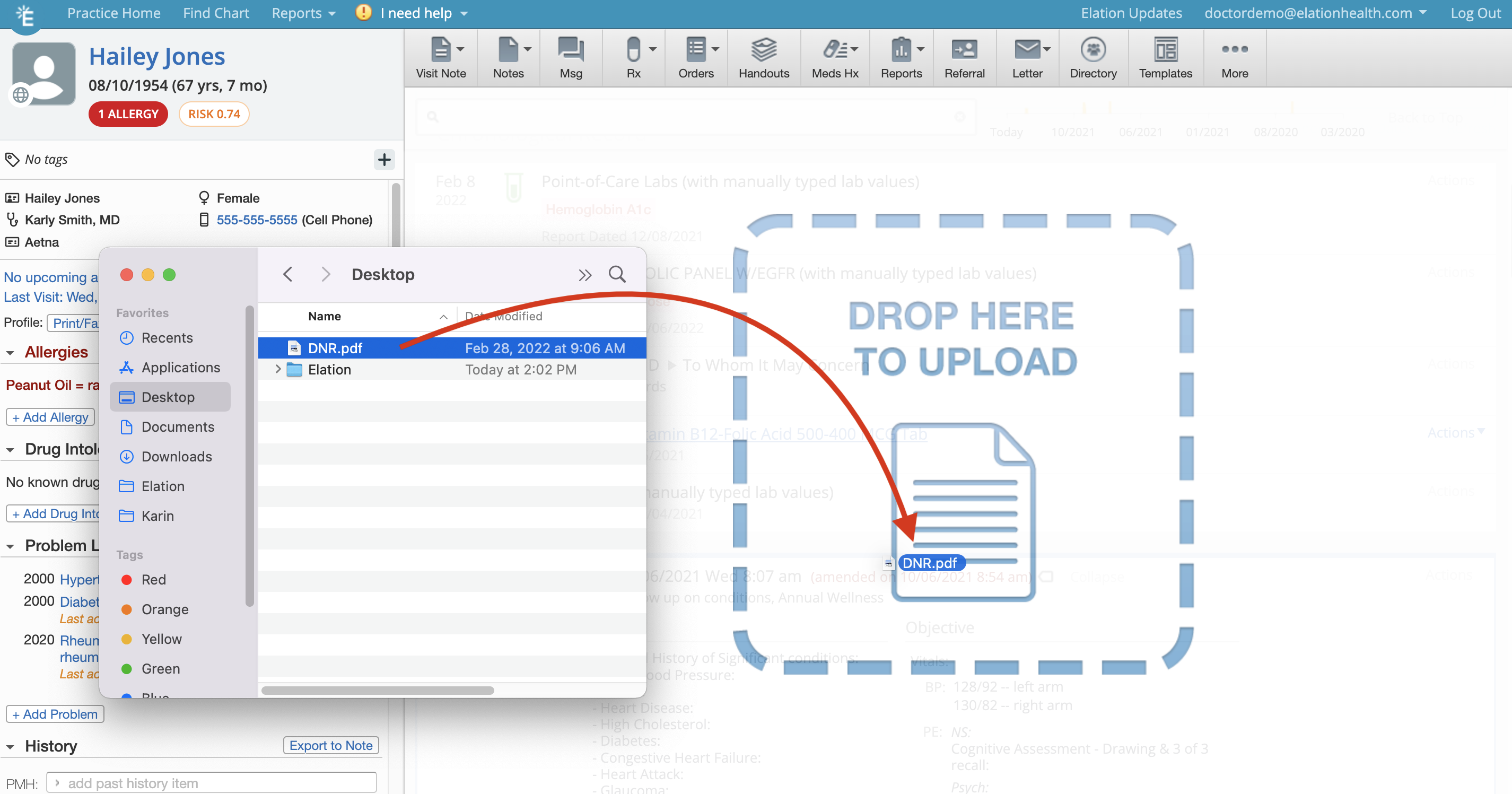

Using the drag-and-drop feature in a visit note draft

1. Find the document you want to file into your patient's chart on your computer
2. While a visit note draft is open, click on the file from your the folder on your computer, hold down on your mouse cursor and drag the file anywhere over the visit note in Elation and release your mouse cursor to drop the file

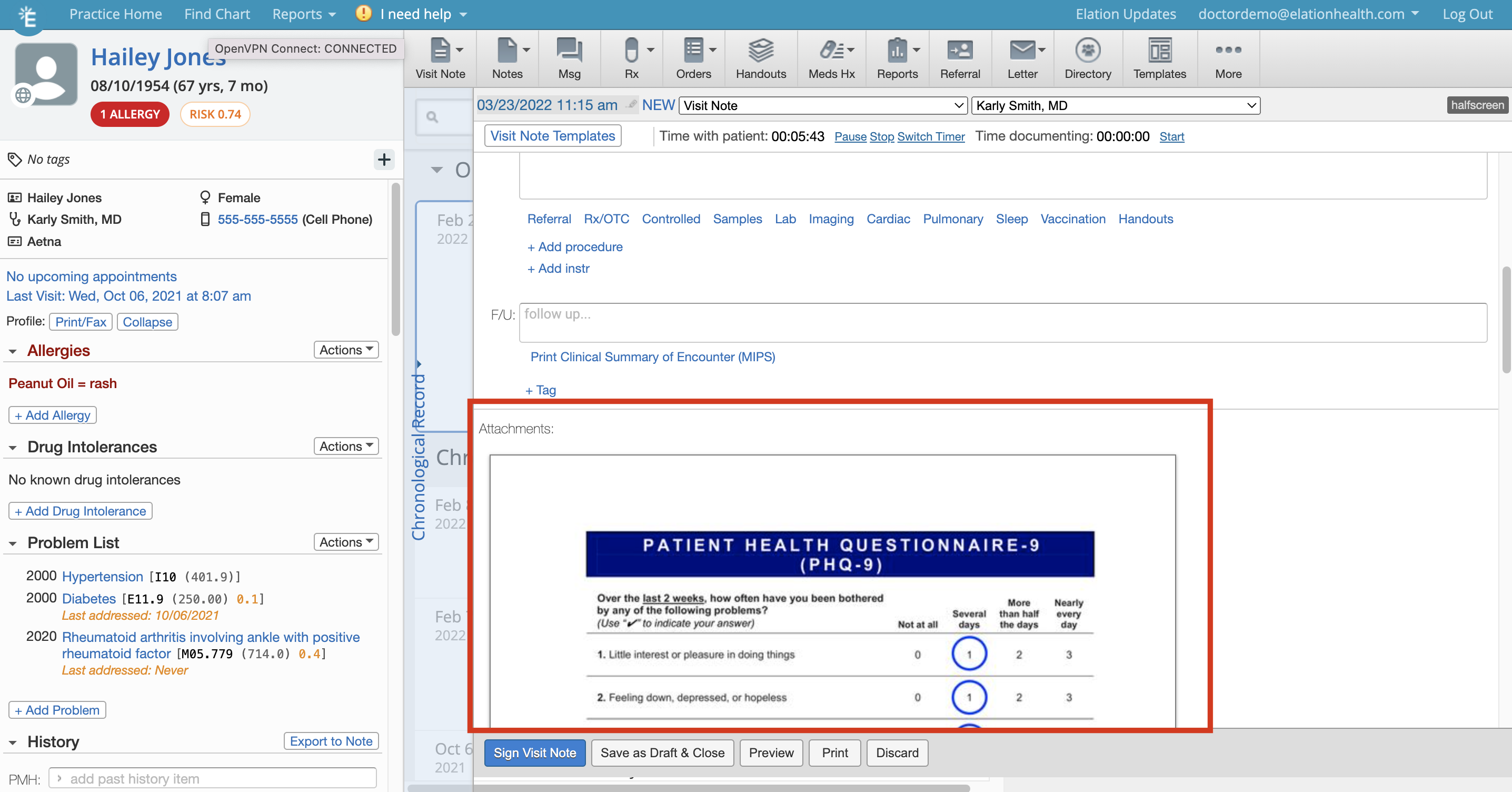

3. Once the document is processed it will appear in a new Attachment section immediately below the Follow Up section of the visit note draft.
   • User Tip: Wait for the document to upload and process before moving or removing it from the original location on your computer or the upload will fail
